Static Cutting

Our static fabric cutting machines, including our TAILOR and TAILOR COMBO models, are the flexible and customizable cutting system, perfect for small production, prototype, made-to-measure and sampling. These machines are designed to adapt to your specific cutting requirements, providing precise cuts for a wide range of fabrics. Our TAILOR and TAILOR COMBO models offer unmatched flexibility, allowing you to easily switch between cutting modes and adjust settings to suit your specific production needs. Whether you’re cutting patterns, markers, or single-ply fabrics, our static cutting machines deliver consistent, high-quality results.

Achieve your production goals with ease and precision

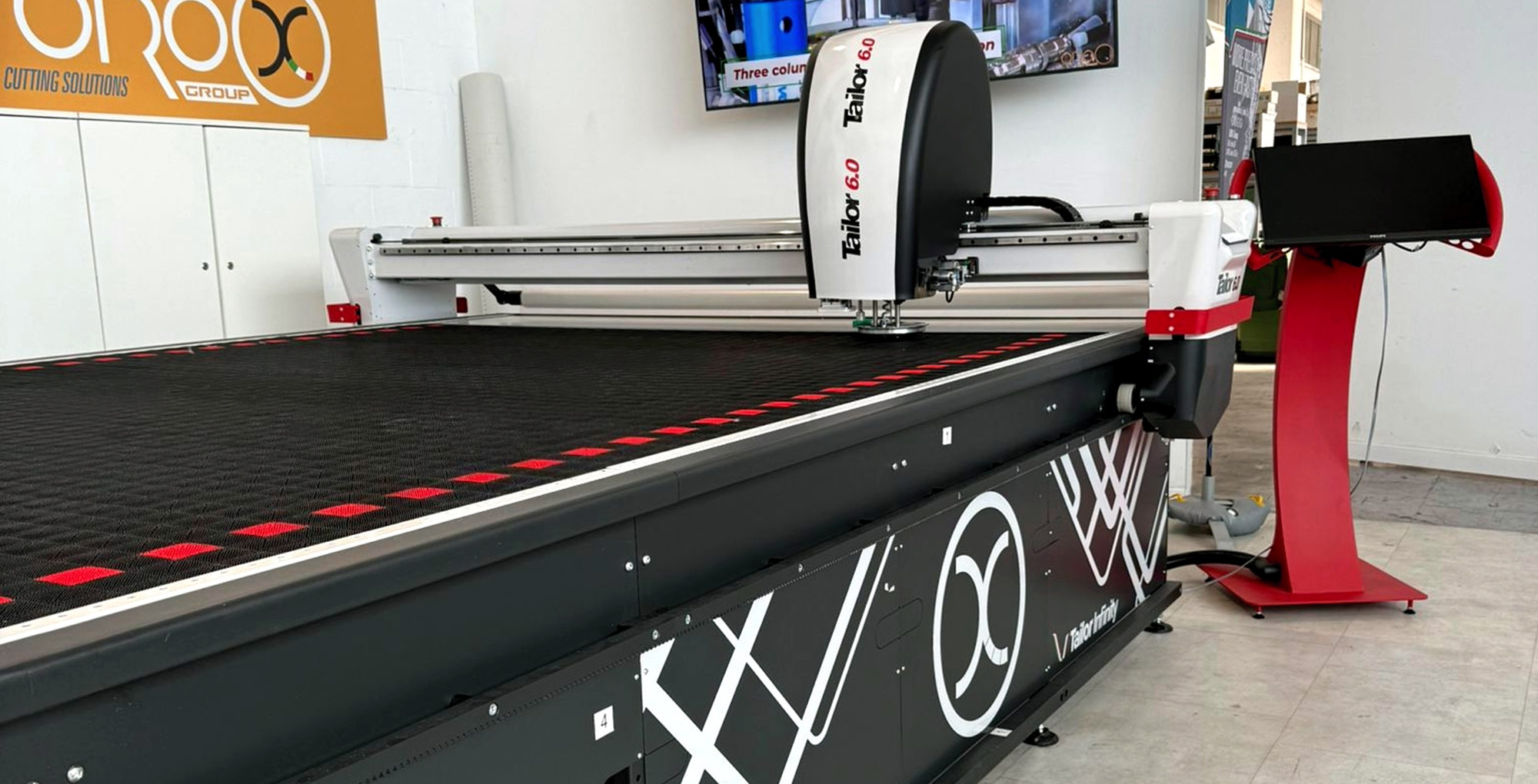

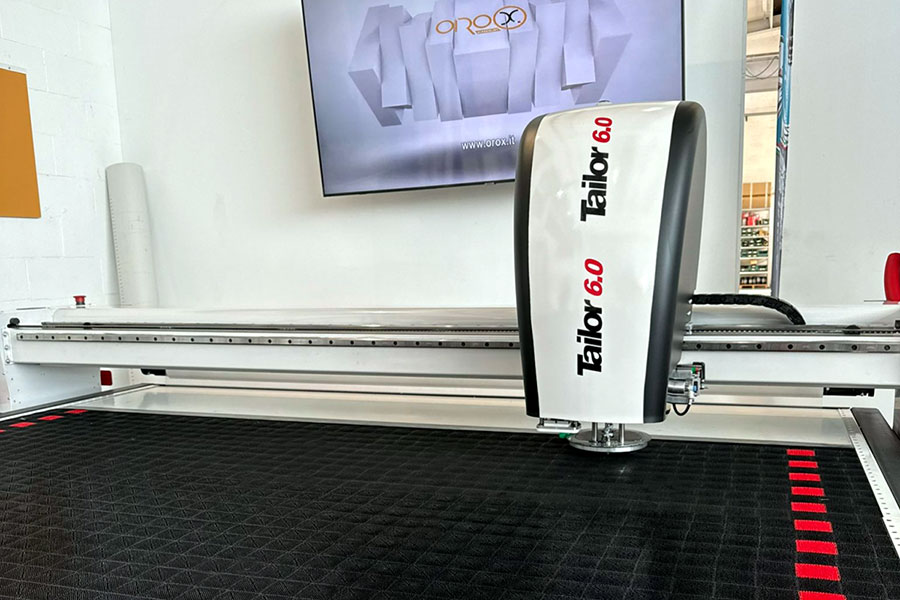

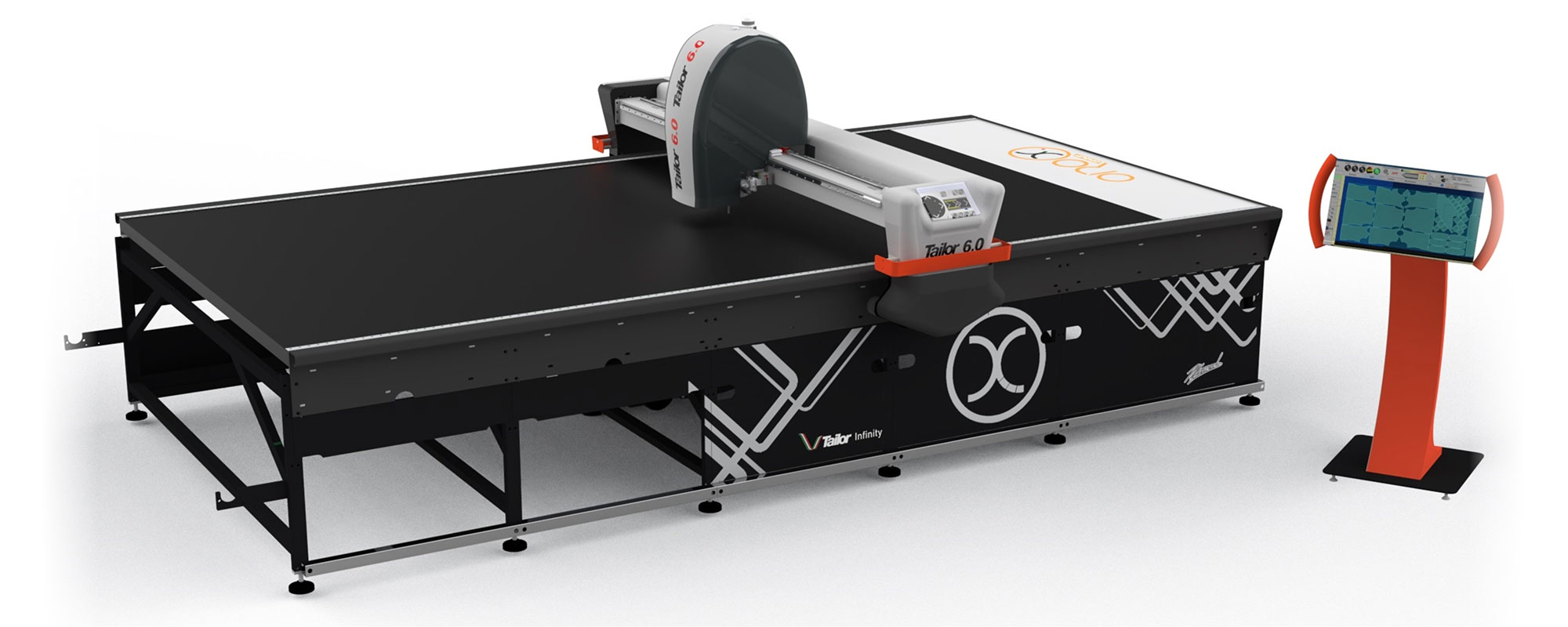

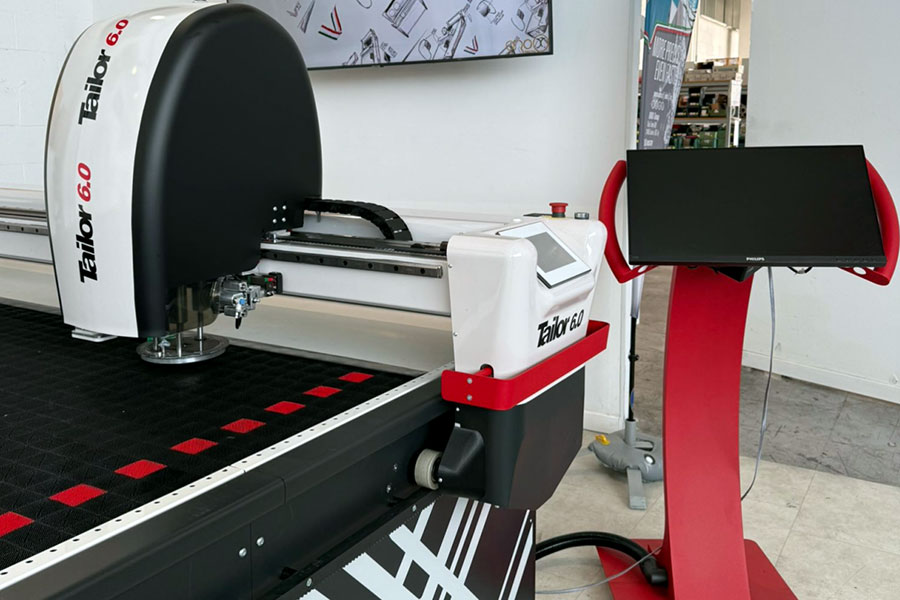

Orox Tailor

OROX TAILOR represent an ideal solution for companies looking to improve their efficiency and productivity in cutting fabrics. Thanks to its automatic cutting technology, this machine allows for considerable time savings and minimizes material waste. Additionally, thanks to its user-friendly design, this machine requires fewer operators compared to manual cutting, thereby reducing labour costs.

Effective cutting height
from single layer up to 3, 6, 8, 10 cm compressed

Effective cutting width
160 / 180 / 200 / 220 cm

Effective cutting length
From 3 mt (base module) to 30 mt (add 1.5mt module)

Max. Power supply
25 Kw single turbine

Average power consumption
6 Kw

Electric requirements
Three phases +neutral 400V 50Hz+/- 10%

Axis speed
90 mt/min

Acceleration
0,8 G

Noisiness
< 75 dB A

Operator side
Left or Right



Effective cutting height
from single layer up to 3, 6, 8, 10 cm compressed

Effective cutting width
160 / 180 / 200 / 220 cm

Effective cutting length
From 3 mt (base module) to 30 mt (add 1.5mt module)

Electric requirements
Three phases +neutral 400V 50Hz+/- 10%

Max. Power supply
25 Kw single turbine

Average power consumption
6 Kw

Axis speed
90 mt/min

Acceleration
0,8 G

Noisiness
< 75 dB A

Operator side
Left or Right



Effective cutting height
from single layer up to 3, 6, 8, 10 cm compressed

Effective cutting width
160 / 180 / 200 / 220 cm

Effective cutting length
From 3 mt (base module) to 30 mt (add 1.5mt module)

Max. Power supply
25 Kw single turbine

Average power consumption
6 Kw

Electric requirements
Three phases +neutral 400V 50Hz+/- 10%

Axis speed
90 mt/min

Acceleration
0,8 G

Noisiness
< 75 dB A

Operator side
Left or Right



These are only few of the features
of TAILOR cutters

Pneumatic sharpening system

Intelligent Knife

Interactive management

Auto diagnostic program

Automatic plate pressure

Pneumatic sharpening system – with grinding stone (5 or 7.3 cm diameter). running at 30.000 rpm.

Automatic knife flection control (FLESE – Intelligent Knife) – this accessory allows to always have the same figure repeated without defects or differences in the various layers of the mattress.

Interactive management of the parameters while cutting – our software automatically manages every aspect of the cut to ensure the best possible result. (speed/vacuum)

Auto diagnostic program to check possible machine’s anomalies

Plate pressure managed automatically by the software while cutting avoiding fabric stress.

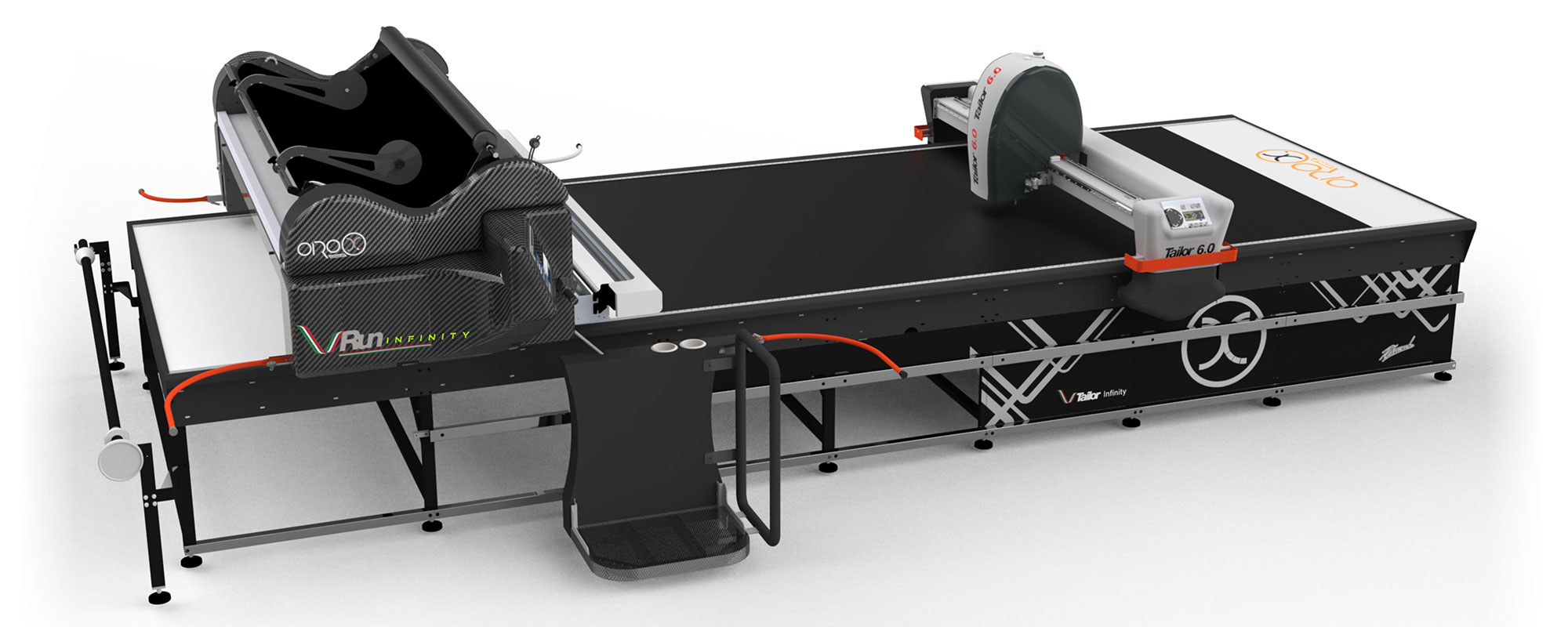

TAILOR COMBO system is the OROX solution that perfectly integrates the features of TAILOR cutters with VRUN spreading, giving to customer the possibility to have a complete customizable solution with affordable price.

The best solution for high quality cutting, reducing manpower costs, waste of raw materials, and eliminate the human mistakes in the cutting room.

The customize system it’s perfect for any type of production site. An innovative solution thanks to the patents by OROX and to the last generation of hardware/software solutions.

TAILOR COMBO technology can be integrated and interfaced with other tool in the cutting rooms, on order to create a single data management platform and achieve the goals to speed up and remove the mistakes in the production process.

ALLCUT SOFTWARE

The software ALLCUT with its algorithms, ensures top performances in the cutting production, combining features such as «zero gap» between the pieces, cut files optimization and advanced management of cutting strategies in the single pieces or in the whole marker.
